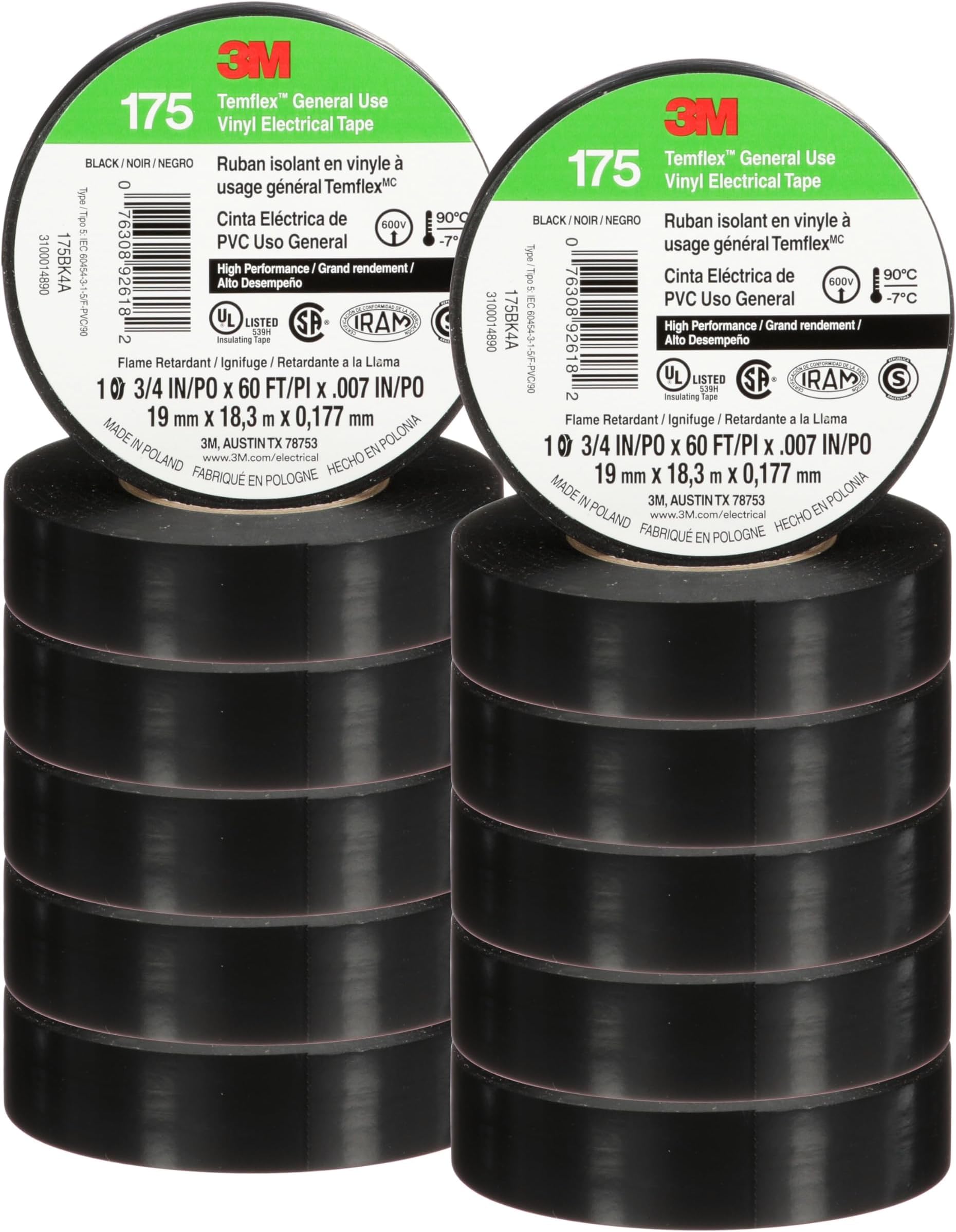

3M Temflex Vinyl Electrical Tape 175, 3/4 in x 60 ft, Black, 10 Rolls
11 sold in last 24 hours
- FOR INDOOR AND PROTECTED OUTDOOR USE: Use where it is required to have a more sustainable, vinyl electrical tape with no volatile organic compounds (VOCs)
- PRIMARY INSULATION: Use as insulation on applications up to 600 V at maximum temperature of 80 °C (176 °F) and minimum temperature of -10 °C (14 °F) on joints and splices in wires and cable (UL510)
- OVERWRAP BUILD-UP: For the harnessing and bundling of wires and cables where build-up is needed and minimum bulk is required
- CSA C22.2 No.197: Primary insulation to 1000 V at maximum temperature of 90 °C (194 °F) and minimum temp of 0 °C (32 °F) on joints and splices in wires and cables in accordance with the Canadian Electrical Code, Part 1
- IEC 60454-3-1: Classification Type 6, Designation IEC 60454-3-1-6/F-PVCP/90 for thermal index of 90 °C (194 °F) and a minimum temperature rating of -10 °C (14 °F)
- CERTIFICATION: UL Listed and CSA Certified
- STABILITY: 5-year shelf life from the date of manufacture
- Compatible with rubber and synthetic splicing compounds
- Flame-retardant and inhibits the corrosion of electrical conductors
- For industrial/occupational use only. Not for consumer sale or use
Tags |
Estimated shipping
Select a product to estimate shipping.3M Temflex Vinyl Electrical Tape 175 is a 7-mil thick, high-performance general-purpose vinyl insulating tape. It is flame-retardant and designed to perform in ambient temperatures up to 194F (90C). The tape is conformable for cold weather application down to 19F (-7C). It has excellent resistance to abrasion, moisture, alkalies, acid, copper corrosion and varying weather conditions. The combination of an elastic PVC backing and pressure-sensitive rubber-based adhesive provides electrical and mechanical protection with minimum bulk. This versatile electric tape is compatible with rubber and synthetic splicing compounds, and is UL Listed and CSA Certified. Commonly used in these types of applications: - UL510: As primary insulation on applications up to 600V at max temperature of 80C (176F) and min temperature of -10C (14F) on joints and splices in wires and cables in accordance with NFPA 70, National Electrical Code - CSA C22.2 No.197: Primary insulation on applications up to 1000V at max temperature of 90C (194F) and min temperature of -7C (19F) on joints and splices in wires and cables in accordance with Canadian Electrical Code, Part 1 - IEC 60454-3-1: Classification Type 6, Designation IEC 60454-3-1-6/F-PVCP/90 for thermal index of 90C (194F) and min temperature rating of -10C (14F) - Industrial, commercial and residential environments - Where it is required to have a more sustainable, vinyl electrical tape with no VOCs (volatile organic compounds) and 100% solvent-free manufacturing process with lower emissions - Where Flame Retardant and Cold Resistance rating is required – UL510 - Cable jacket repair (up to 600V (UL) / 1000V (CSA) as primary insulation) and as mechanical protection when overwrapping rubber splicing, and mastic tapes used on LV/MV/HV joints and splices - Indoor and weather protected outdoor operations as determined by end-user where use of a professional grade vinyl electrical tape is not required
Important information
Legal Disclaimer
3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert. For additional product information, visit www.3M.com.
Product details
| Main Specification | |
|---|---|
| Suderinama medžiaga | Guminis or Vinilas |
| Medžiaga | Varis or PVC or Guminis or Vinilas |
| Gamintojas | 3M |
| Vienetų skaičius | 600 Feet |
| Paviršiaus rekomendacija | Plastikas |
| Tempimo stiprumas | 15.4 pounds_per_inch |
| Prekės ženklas | 3M |
| UPC | 702872572172 |
| Prekių skaičius | 10 |
| Rekomenduojami produkto naudojimo būdai | Elektrinis |
| Atsparumo vandeniui lygis | Atsparus vandeniui |
| Įtraukti komponentai | 10 Rolls |
| Storis | 7 mils mils |
| Aukštesnės temperatūros reitingas | 176 ° F |
| Spalva | Juoda |
| Tarptautinės prekybos identifikavimo numeris | 30076308926183 |
| Product information | |
| Pakuočių skaičius | 10 |
| Technical Details | |
| Medžiagos tipas | Varis or Vinilas or Guminis or PVC |
| Dalies numeris | 92618 |
| Pavyzdys | 92618 |
| Lipniosios pusės skaičius | 1 |
| Item details | |
| Prekės tipo pavadinimas | Electrical Tape |
| Others | |
| Punkto paryškinimas | Flame Retardant or Pressure-Sensitive Adhesive or Electrical and Mechanical Protection |
| Produkto tipas | Electrical Tape |
| Matmenys L x W x storis | 0, 75 "W |
| Kitos specialios produkto savybės | Guminiai |
| Dydžio pavadinimas | 3/4 in x 60 ft |
