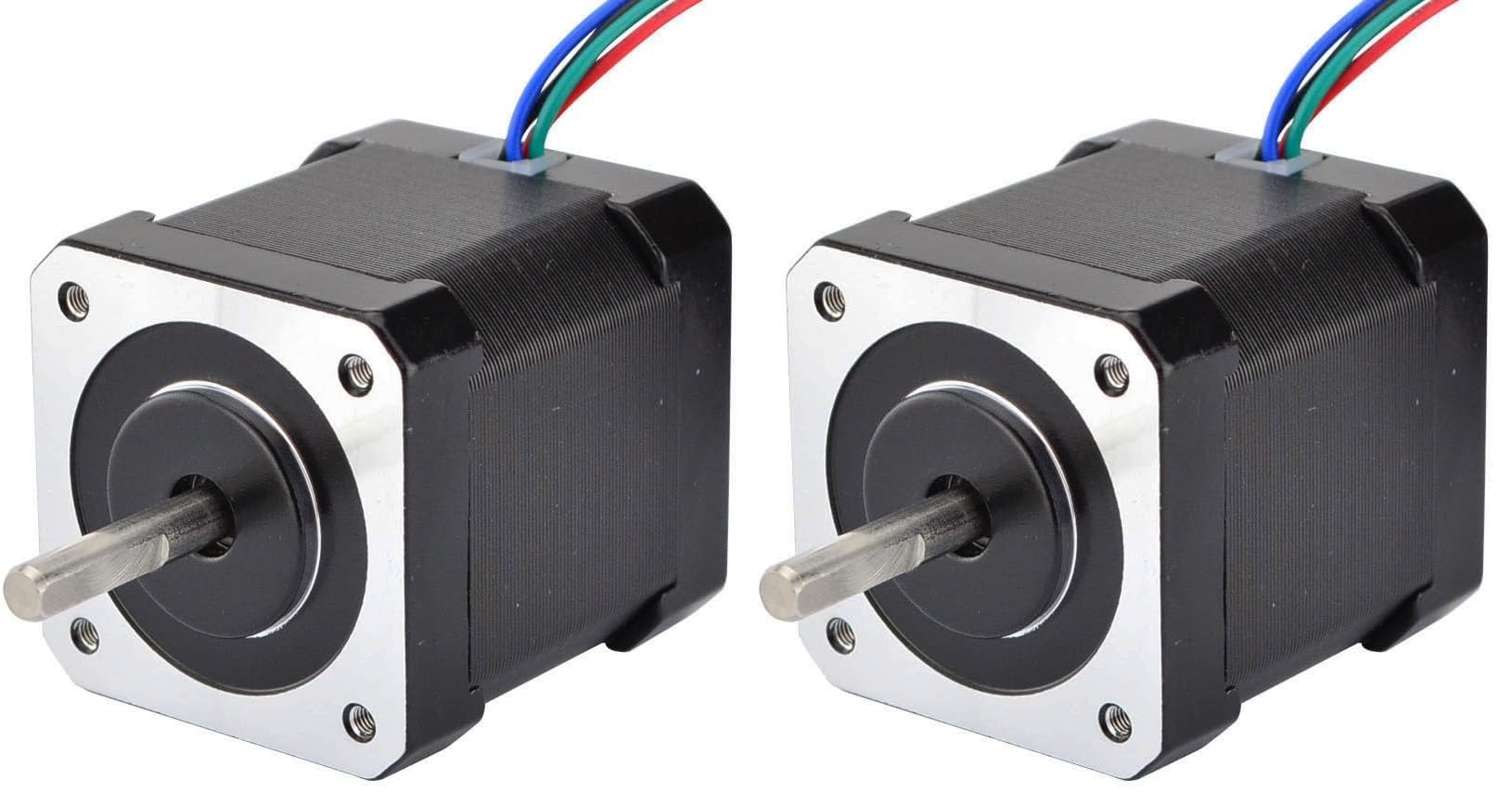

STEPPERONLINE Nema 17 Stepper Motor Bipolar 2A 59Ncm(84oz.in) 48mm Body 4-Lead W/ 1m Cable and Connector Compatible with 3D Printer/CNC
5 sold in last 24 hours
- 3D printer motor with high torque
- 59Ncm(83.6oz.in) holding torque
- NEMA 17 bipolar 1.65"x1.65"x1.89" 4-wire
- Build with 39.37"( 1m) Cable and 0.1" pitch Connector
- Rated current 2.0A & resistance 1.4ohms
Tags |
Estimated shipping
Select a product to estimate shipping.Nema 17 Stepper Motor 2A 59Ncm
Reliable and Stable Performance
STEPPERONLINE focus on the quality of stepper motors and minimizes the rate of defective ones, which ensure that customers can get the most reliable and stable stepper motors.
Low Noise
1.Use excellent materials; 2. Reasonable stepper motor design structure 3. High Precision motor assembly, which makes STEPPERONLINE' stepper motors stand out by providing quieter and smoother operation
Safely Packaging
STEPPERONLINE specially designed Individual package to ensure your packages withstand the long trip and arrive safely and intactly. Besides, the package is made from recyclable materials, providing you with professional safety delivery.
Motor Dimension
Warning
Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.
Connection:
A+: Black, A-: Green, B+: Red, B-: Blue
Electrical Specification
STEPPERONLINE
High Quality with Global Standards
Flexible Customization
Expert Choice
Product details
| Main Specification | |
|---|---|
| Gamintojas | OSM Technology Co.,Ltd. |
| Prekės ženklas | STEPPERONLINE |
| UPC | 191388825313 798167993654 191579035491 701056358779 190657686020 712322835252 789164236554 715624560631 |
| Prekių skaičius | 1 |
| Horsepower | 1.4 hp |
| Produkto matmenys | 1.65"W x 1.65"H |
| Įtampa | 12 voltai |
| Svoris | 14.08 uncijos |
| Product information | |
| Greitis | 200 Rpm |
| Technical Details | |
| Medžiagos tipas | stainless steel(40%) or copper wire(30%) or plastics(20%) or aluminium alloy(10%) |
| Dalies numeris | 17HS19-2004S1 |
| Pavyzdys | 17HS19-2004S |
| Others | |
| Produkto tipas | Mounts |
| Matmenys W x H | 1.65"W x 1.65"H |
