Concrete Vibrator Vibration Motor Single Phase AC 110V 3600RPM Vibrating Motor With Power Plug for Shaker Table (30 Watts)
11 sold in last 24 hours
- [ SPECIFICATIONS] power: 30W; vibration force: 66LBS(30kg); speed: 3600rpm; voltage: 1phase 110V ; insulation class-F; waterproof class IP65
- [With US POWER PLUG AND SWITCH ]:Match with US POWER PLUG AND SWITCH, make it easy and simple to operate
- [ADJUSTABLE VIBRATING FORCE]The eccentric block of this vibration motor can be adjusted to change the vibration force to meet various working requirements. Note: The eccentric blocks on both sides of the vibration motor must be confirmed to be symmetrical.
- [180°CHigh temperature resistant stator]: high temperature resistant pure copper enameled wire, long service life
- [ Excellent Bearing & Rotor]The bearing is precise, low noise, and shock-resistance for smooth operation. The rotor is high-hardness and wear-resistant to keep high speed. long service life
Tags |
Estimated shipping

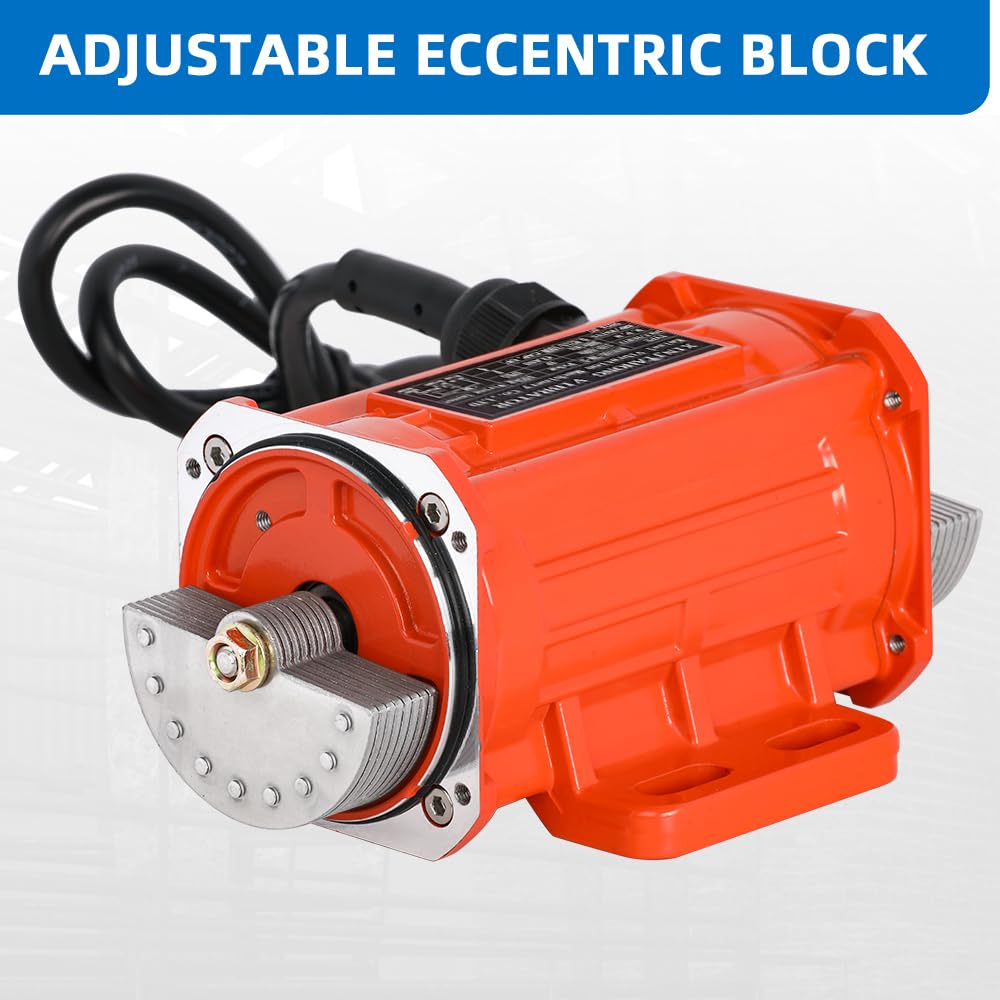

Select a product to estimate shipping.Adjustable Eccentric Block
You can adjust the angle of the eccentric block, to change the excitation force ,This function can help to meet a variety of work needs.

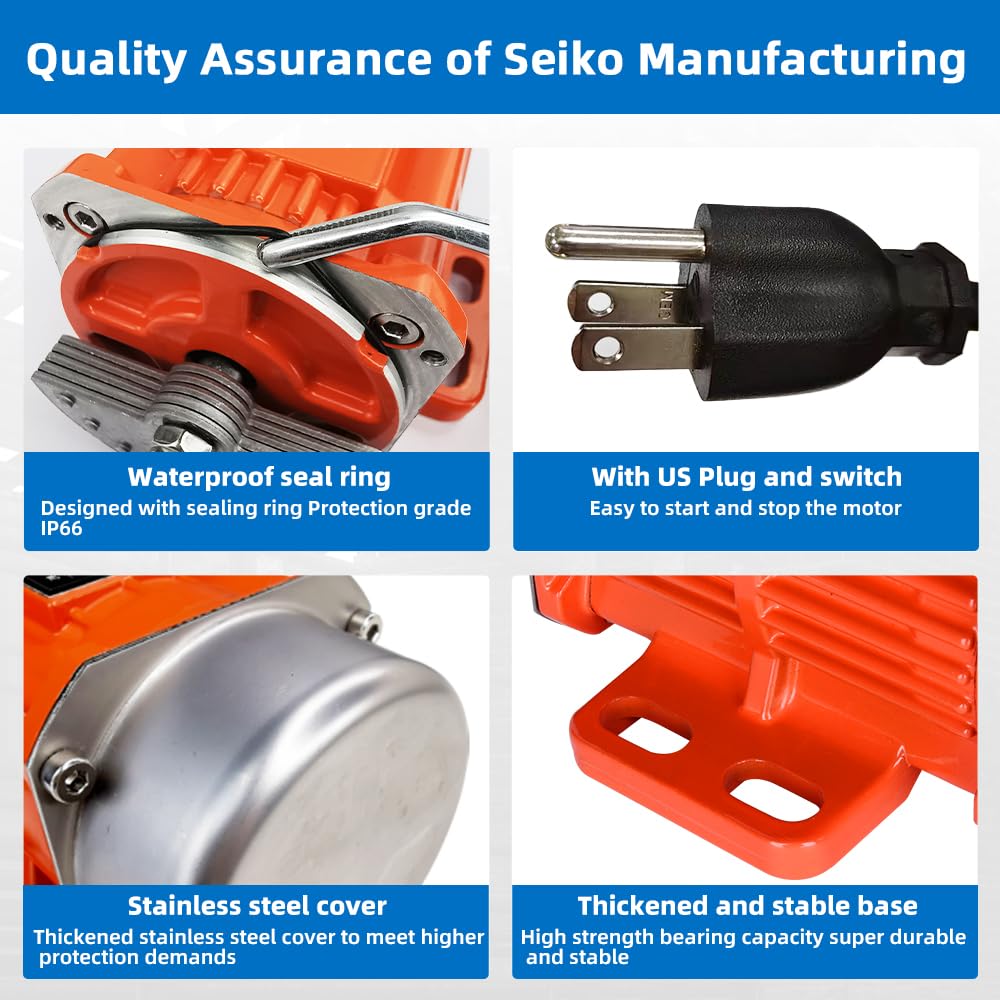

Double protection of power cord
oil-resistant, anti-oxidation special power cord with power cord protection sleeve, double protection to prevent damage to the power cord during prolonged vibration
Aluminum alloy enclosure thickened base,High strength endurance,Longer service life

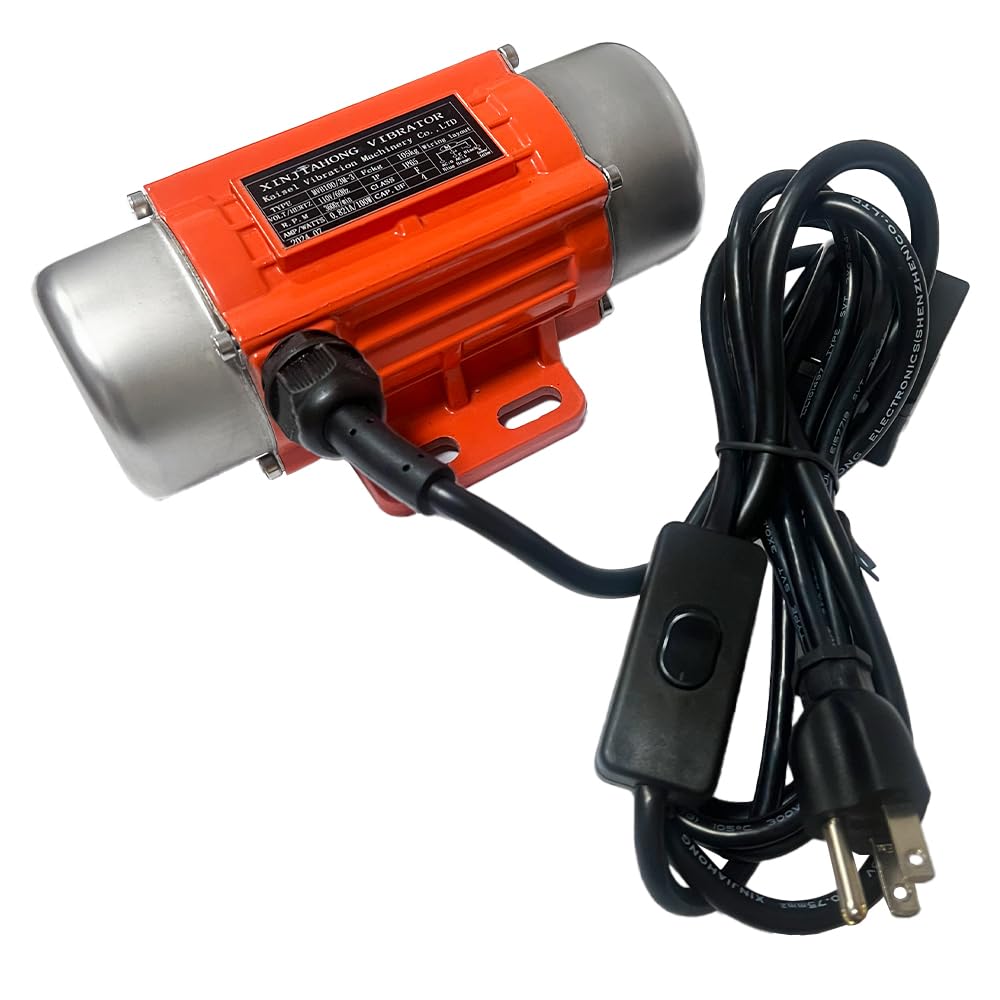

US power plug and switch
2.5M Power Cable With US Power Plug And Switch,easy to control the start and stop

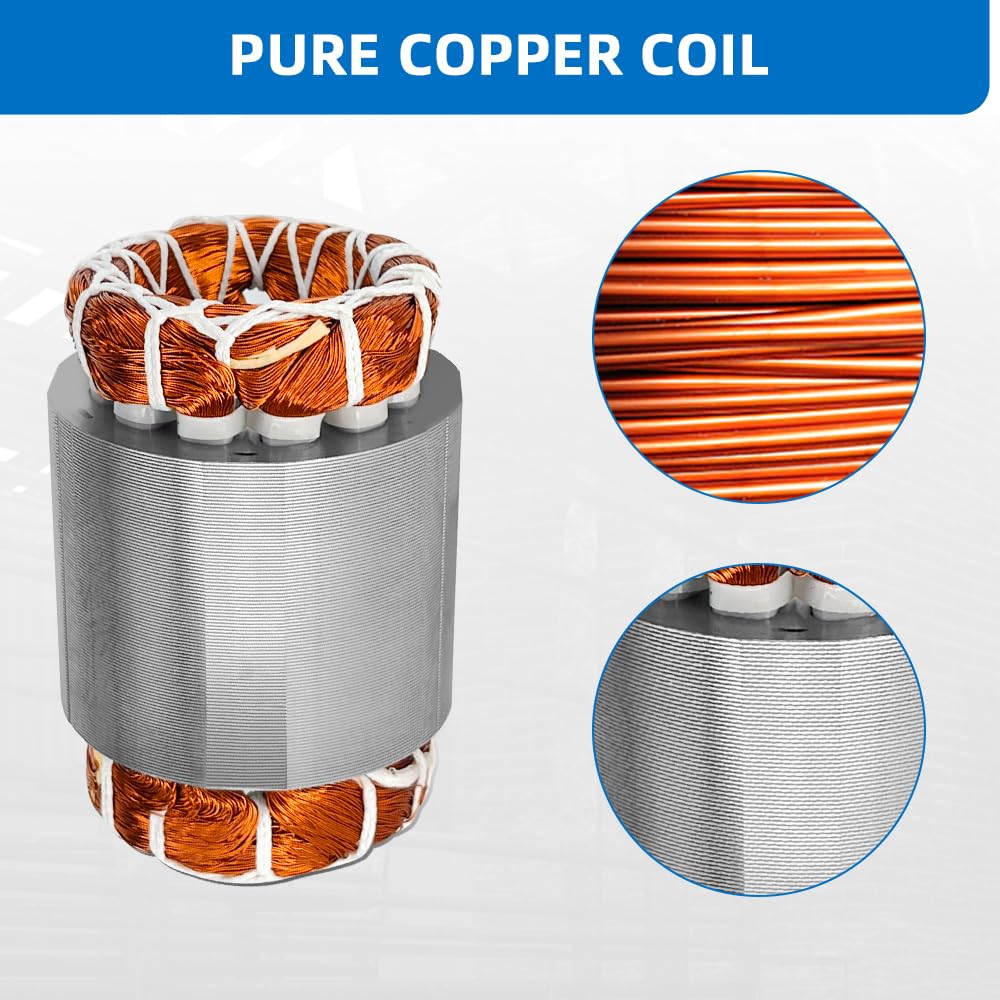

Pure copper coil
This concrete vibrating motor adopts pure copper coil, which is the low-temperature rise, durable, high-temperature resistant, and ensures stable current.
The enameled pure copper coil is resistant to high temperature of 180°C/356°F, with low temperature rise, long service life, strong magnetic field, and “F” insulation level.
High-quality bearing
The bearing is precise, low noise, and shock-resistance for smooth operation. The rotor is high-hardness and wear-resistant to keep high speed.
Wide application scope
The main applicable equipment of this vibration motor are vibrating table, vibrating feeder, vibrating screen, specific gravity de-stoner, etc... Widely used in mining, metallurgy, coal, electric power, construction, chemical, medical, casting, food, powder coating equipment, powder sieving, food machinery, massage equipment, etc.
Product details
| Main Specification | |
|---|---|
| Įtraukti komponentai | Naudotojo vadovas or VIBRATION MOTOR |
| Gamintojas | SHENZHEN KAISIER ZHENDONG JIXIE YOUXIAN GONGSI |
| Prekės ženklas | XINJIAHONG |
| Horsepower | 30 watts |
| Energijos šaltinis | AC |
| Įtampa | 110 voltų |
| Wattage | 30 vatų |
| Medžiaga | Aluminium Alloy |
| Spalva | 30w |
| Svoris | 4.22 pounds |
| Product information | |
| Pakuotės matmenys | 7.76 x 6.1 x 5.04 inches |
| Prekės modelio numeris | X0430W-PLUG |
| Greitis | 4500 Rpm |
| Technical Details | |
| Dalies numeris | X0430W-PLUG |
| Others | |
| Data pirmą kartą prieinama | 2024 m. or September 28 |
| Produkto tipas | Concrete Vibrators |
